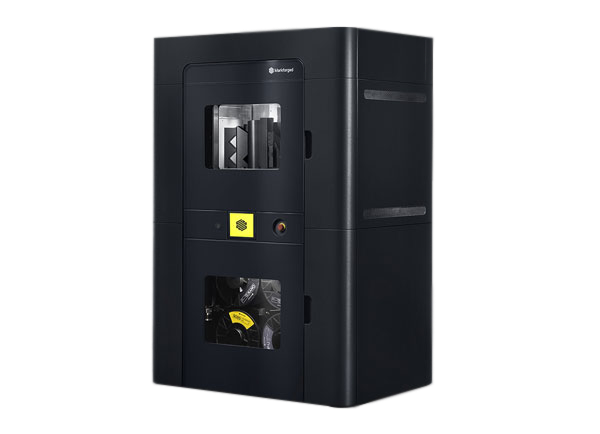

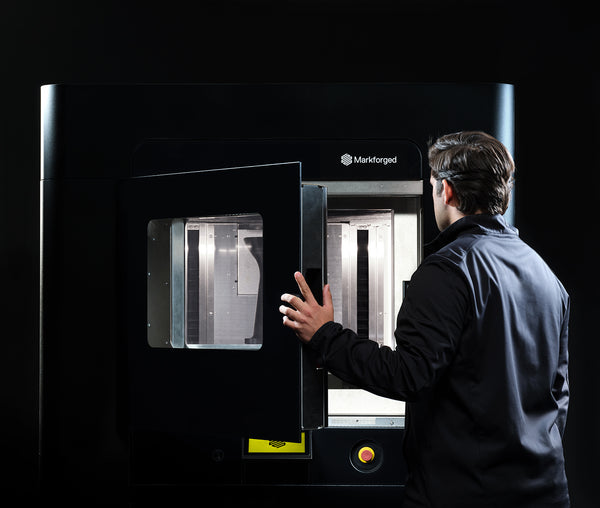

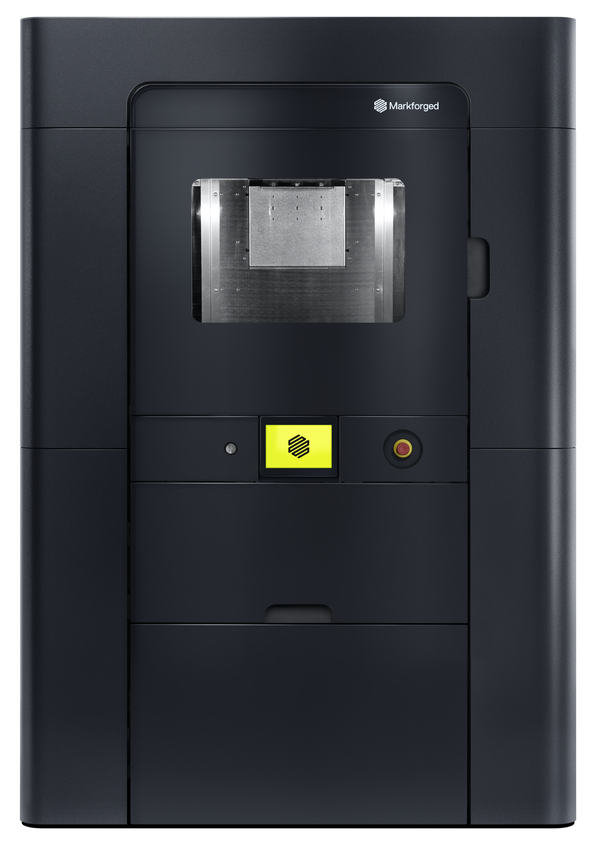

Markforged FX20

An ULTEM™ Filament capable large format 3D printer for big, strong, high temp parts — usable from factory floor to flight. The FX20 brings the Digital Forge and Continuous Fiber Reinforcement to a new realm of parts, problems, and industries.

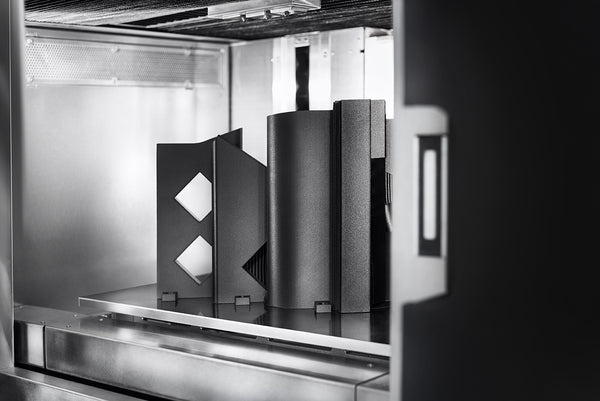

Massive Builds, Faster
The FX20 pairs size and throughput to make larger builds at incredible speeds,
delivering the transformational benefits of The Digital Forge at a new scale.

Functional Parts, from Factory to Flight
Built for everything from performance tooling and fixtures to flight-ready production parts — this large format 3D printer can reinforce ULTEM™ 9085 filament with continuous carbon fiber.

Production-Ready Performance
A precision-designed, sensor-driven production 3D printer delivers
breakthrough reliability and performance with a simple user experience.

The biggest, fastest, and most sophisticated 3D printer we’ve ever built.

Physical Dimensions
  • Width 1325 mm
  • Depth 900 mm
  • Height 1925 mm
  • Weight 453 kg / 1000 lbs

Build Volume
  • Width 525 mm
  • Depth 400 mm
  • Height 400 mm

Printing Process
Fused Filament Fabrication, Continuous Fiber Reinforcement

Z Layer Resolution
50 μm - 250 μm

Printing Media
Polymer Filament, Continuous Fibers

Internal Part Geometry
Closed Cell Infill with Continuous Fiber Reinforcement

Print Bed
Precision Machined Aluminum

Continuous Fiber Reinforcement, now with ULTEM™ 9085 filament.

The following materials can be used on the Markforged FX20

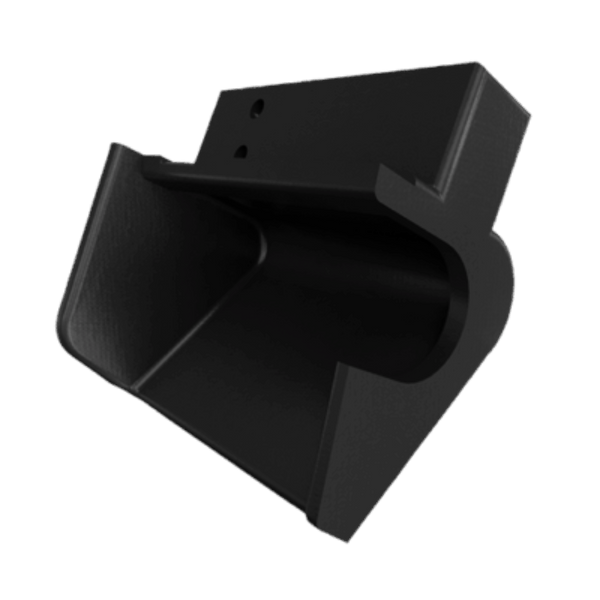

  • Onyx

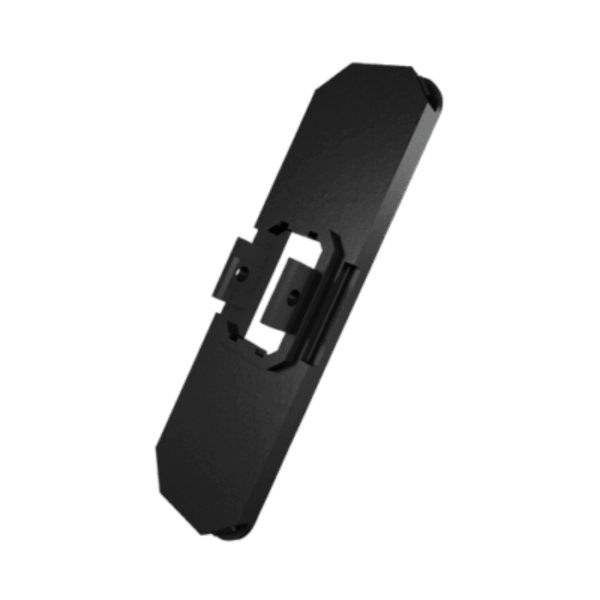

  • Onyx FR

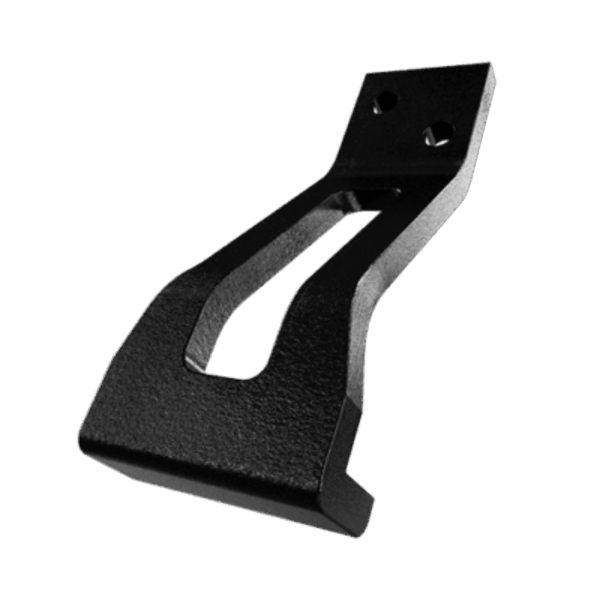

  • Onyx ESD
  • ULTEM™ 9085 Filament

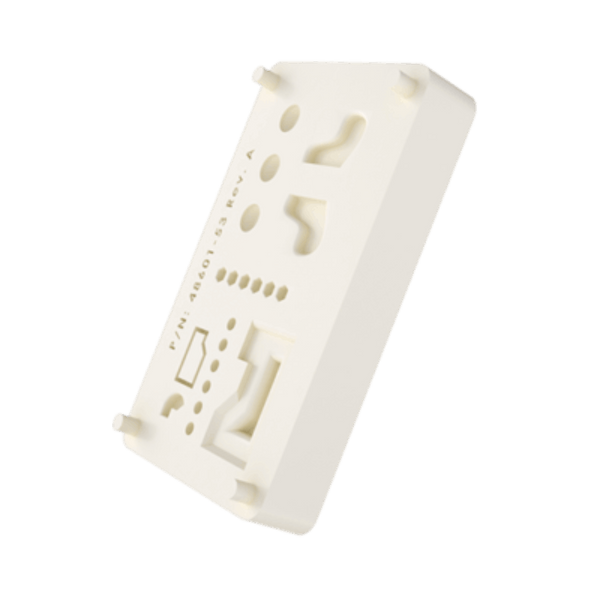

  • Nylon

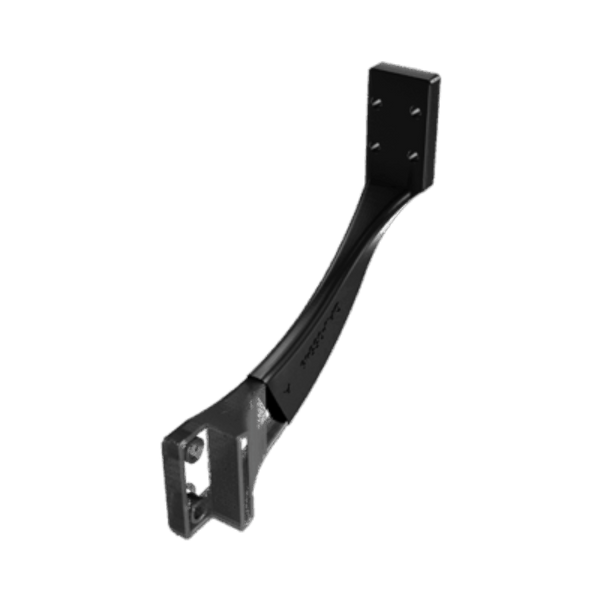

  • Continuous Carbon Fiber
  • Continuous Carbon Fiber FR

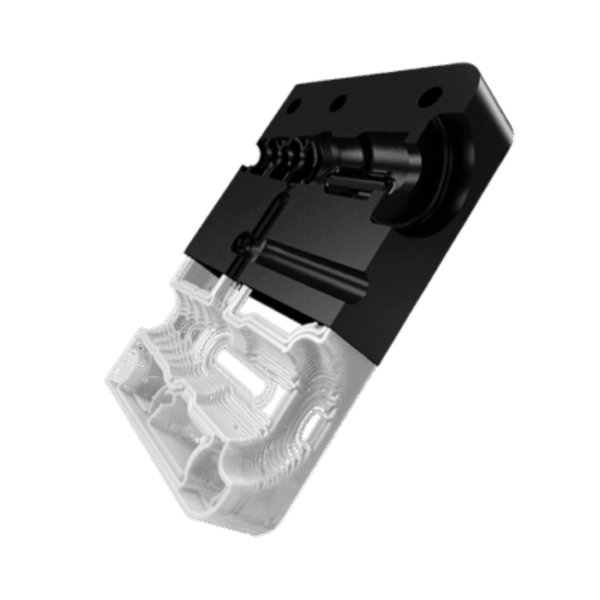

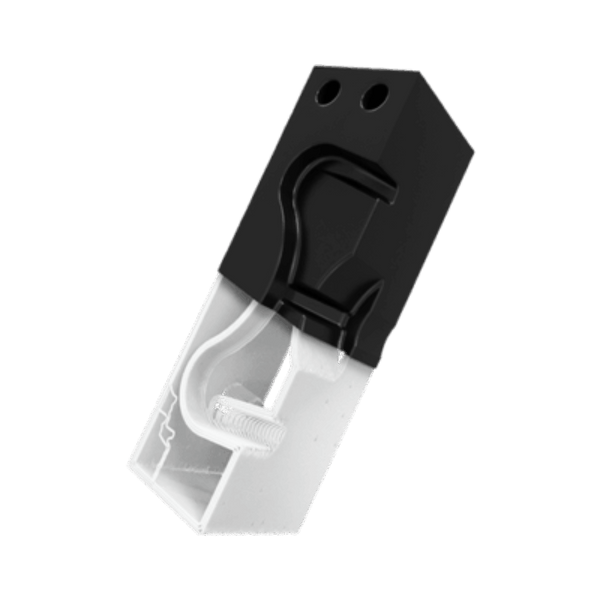

  • Continuous Fiberglass

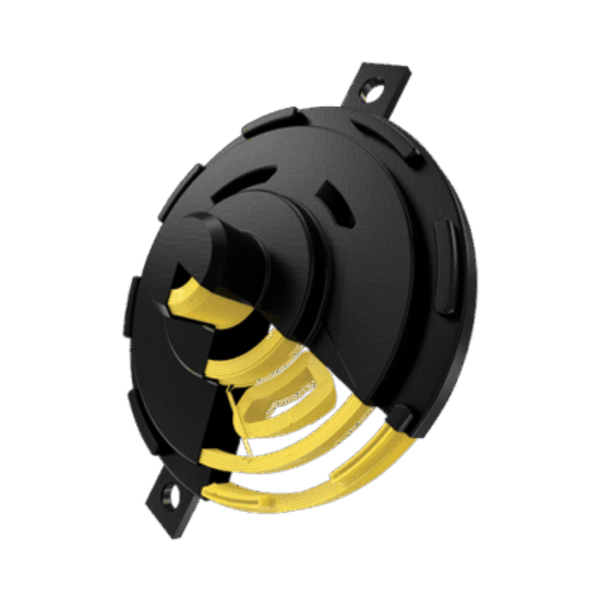

  • Continuous Aramid Fiber (Kevlar®)
  • Continuous HSHT Fiberglass

Support for Markforged plastic and fiber materials will be added over time, although not every combination.

The “ULTEM™ and 9085 trademarks are used under license from SABIC, its affiliates or subsidiaries.

3D Printing Software Meets Production Management
Eiger is Markforged’s do-it-all solution for building your additive toolchain. Collaborate on parts across teams and kick-off prints globally on a simple to use, continuously improving platform.

Regular price $239,900.00

Shipping calculated at checkout

In stock
